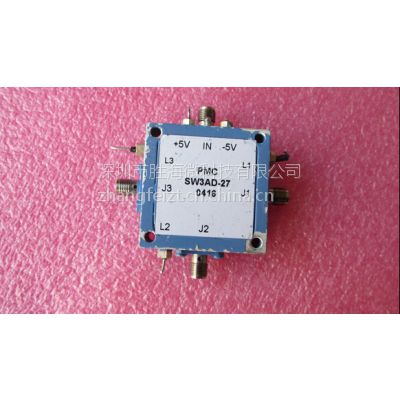

SW3AD-27 PMC进口 0.1-12.4GHz SP3T 单刀三掷 射频微波 高速 同轴电子PIN开关
SPECIFICATIONS
Input Frequency Range: 2.0 - 8.0 GHz 实际测试 0.1-12.4GHz 请看测试图
Switch Type: SP3T
Insertion Loss: 3.2 dB Max
***lation: 55 dB Min
VSWR: 1.60:1
Input Power: 200 mw (23 dBm)
Switching Time: 100 nsec
Driver: Schottkey TTL
Voltage/Current Required: +5 Vdc @ +70 mA, Typical
-5 Vdc @ -50 mA, Typical
Individual TTL Control Logic: Logic “0“ (-0.3V to +0.8V) = ON
Logic “1“ (+2.0V to +5.0V) = OFF
***资料
/spec_sheets/SW3AD-27.pdf
测试图
