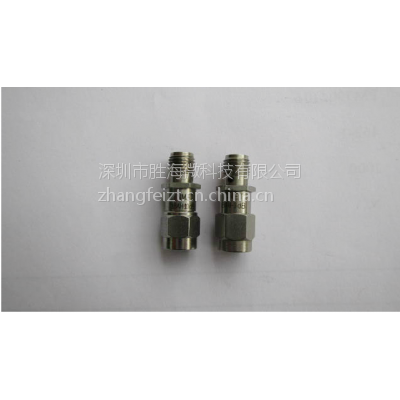

18AH-10dB INMET DC-18GHz 10dB 2W SMA RF 射频微波同轴固定衰减器
***资料
/AMS/INMET/PDFILES/18A-ATT.pdf
射频微波同轴固定衰减器
品牌：INMET
型号：18AH-10dB
频率范围：DC-18 GHz
衰减值：10dB
衰减精度：±0.5dB
平均功率(Max)：2 W
峰值功率(Max)：0.2 kW
驻波比(Max)：1.15(DC-4)，1.30(4-12.4)，1.35(12.4-18)
连接器形式：SMA Female to SMA Male
操作温度：-54 to +105℃
储藏温度：-55 to +125℃
Electrical:
Mates with MIL-STD-348
In 1 dB Increments
Derated Linearly to 0.5 Watts @ +125 C
(5uSec Pulse, .05% Duty Cycle)
o
Standard dB Values
Impedance
Operating Temp Range
DC - 4 GHz
7 - 20 dB
0 - 6 dB
4 - 8 GHz
Attenuation Accuracy
Input Power
Peak Power
VSWR
Frequency Range
50 Ohms
-65°C to +125°C
1.15:1 Max.
1.20:1 Max.
2 Watts Avg. @ 25°C
250 Watts Max.
DC - 18 GHz
21 - 30 dB
8 - 12.4 GHz 1.25:1 Max.
Gold Plated Beryllium Copper
SMA Connectors
Conductors
Passivated Stainless Steel
12.4 - 18 GHz 1.35:1 Max.
DC - 18 GHz
±0.3 dB
±0.5 dB
±0.75 dB
Standard Freq. Values 2.5, 6, 18 GHz
*Other dB values, units that operate over a more specific frequency band and/or offer very low
return loss (VSWR); gold plated units and/or connectors optimized for RF leakage also available.
Aeroflex / Inmet, Inc. 300 Dino Drive, Ann Arbor, MI 48103 ? U.S.A.
888-244-6638 or 734-426-5553 FAX: 734-426-5557
/inmet?inmetsales@aeroflex.com
?
?
0-10, 12, 15, 20, 30 & 40 dB
40 dB ± 1.5 dB
