| 品牌：进口 | 型号：AUM-2*** |

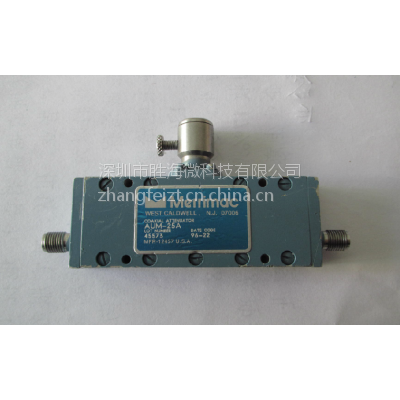

AUM-2*** 0.5-12GHz 0-40dB SMA 射频微波同轴精密连续可调衰减器
GENERAL SPECIFICATIONS
Attenuation Range:
0.5 - 1 GHz: 10 dB min.
1 - 2 GHz: 20 dB min.
2 - 4 GHz: 30 dB min.
4 - 8 GHz: 40 dB min.
8 - 12 GHz: 30 dB min.
Insertion Loss:
0.5 - 8 GHz: 0.5 dB max.
8 - 12 GHz: 0.7 dB max.
VSWR:
0.5 - 8 GHz: 1.5:1 max.
8 - 12 GHz: 2.0:1 max.
Impedance: 50 W nom.
CW Power: 2 Watts max
Operating Temperature: -- 55° to +85°C
General Notes:
1. The AUM/AUMP-2*** series has been designed for wideband ECM systems
and other microwave applications in the 0.5 to 12 GHz frequency band where
precise attenuation must be maintained over a wide variety of military and
laboratory environments. Applications include signal and LO power control,
automatic level control and impedance matching.
2. The AUM/AUMP-2*** series of attenuators use ferrite absorption of
microwave energy for long term stability and high reliability. They meet
applicable paragraphs of MIL-A-24215 and can be supplied screened to meet
specific military and commercial high reliability applications.
